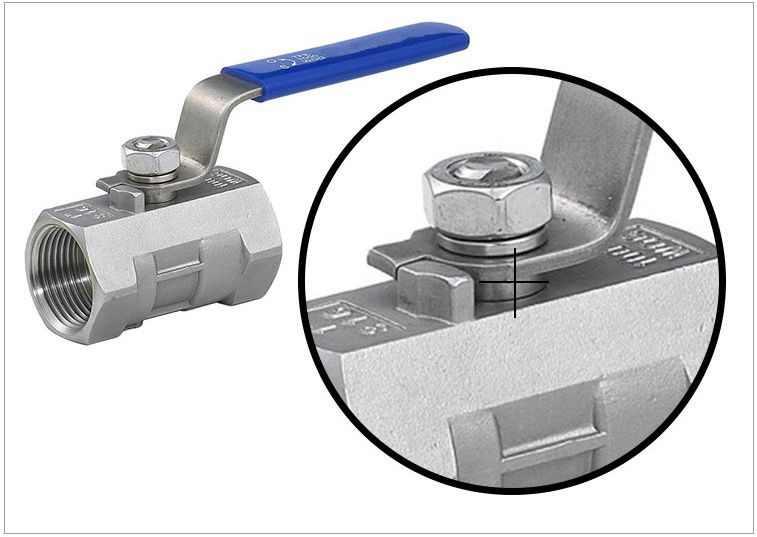

PRODUCT DESCRIPTION
Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Srrength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicable media:Q11F-(16-64)C Water,Oil,Gas
Applicable temperature:-29~180℃
Applicable media:Q11F-(16-64)P Nitric acid,Q11F-(16-64)R Acetic acid
MATERIALS OF MAIN PATRS
|
Parts name
|
Q11F-(16-64)C
|
Q11F-(16-64)P
|
Q11F-(16-64)R
|
|
Body
|
WCB
|
ZG1Cr18Ni9Ti
CF8
|
ZG1Cr18Ni12Mo2Ti
CF8
|
|
Bonnet
|
WCB
|
ZG1Cr18Ni9Ti
CF8
|
ZG1Cr18Ni12Mo2Ti
CF8
|
|
Ball
|
1Cr18Ni9Ti
304
|
1Cr18Ni9Ti
304
|
1Cr18Ni12Mo2Ti
316
|
|
Stem
|
1Cr18Ni9Ti
304
|
1Cr18Ni9Ti
304
|
1Cr18Ni12Mo2Ti
316
|
|
Sealring
|
Poltetrafluorethylene(PTFE)
|
|
Packing
|
Poltetrafluorethylene(PTFE)
|

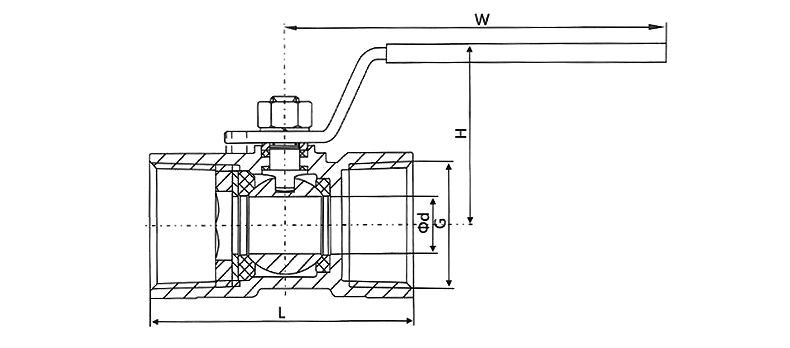

MAIN OUTER SIZE
|
DN
|
G
|
d
|
L
|
H
|
W
|
|
8
|
1/4”
|
5
|
40
|
34
|
70
|
|
10
|
3/8”
|
7
|
45
|
36
|
70
|
|
15
|
1/2”
|
8
|
55
|
39
|
80
|
|
20
|
3/4”
|
12
|
60
|
43
|
90
|
|
25
|
1”
|
15
|
70
|
46
|
105
|
|
32
|
11/4”
|
20
|
80
|
53
|
120
|
|
40
|
11/2”
|
25
|
86
|
59
|
130
|
|
50
|
2”
|
32
|
101
|
64
|
145
|
|
65
|
21/2”
|
38
|
117
|
74
|
170
|
|
80
|
3”
|
49
|
140
|
105
|
185
|
|
100
|
4”
|
64
|
186
|
115
|
220
|
