Name:
|
Food Grade Stainless Steel Threaded Butterfly Valve
|
|
Standard or Nonstandard:
|
Standard
|
|
Structure:
|
Butterfly
|
|
Pressure:
|
Low Pressure
|
|
Power:
|
Manual
|
|
Temperature of Media::
|
Normal Temperature
|
|
Media:
|
Water
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|

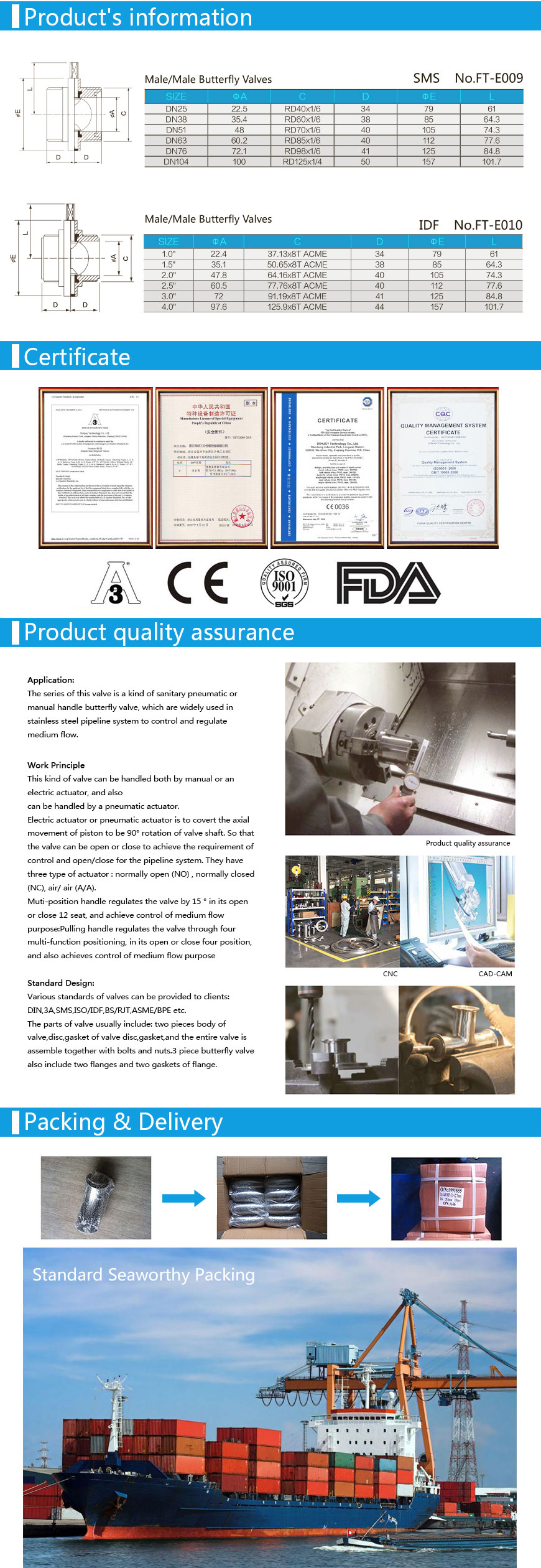

PRODUCT DESCRIPTION
|
Product Name:
|
Food Grade Stainless Steel Threaded Butterfly Valve
|
|
Material:
|
SS304 or SS316L
|
|
Standard:
|
SMS, 3A, DIN, IDF, RJT, ISO
|
|
Size:
|
DN10-300 or 3/4" - 12"
|
|
Connection Way:
|
Weld, Clamp, Thread, Flange,etc
|
|
Operated:
|
Manual, Pneumatic or Electric
|
|
Manual Handle:
|
Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),
Stainless Steel Trigger Hanlde (13 Positions)
|
|
Seal Material opition
|
Silicon, EPDM NBR or Viton
|
|
Surface Finishing:
|
Ra≤0.8
|
|
Working Temperature:
|
-10 degree to +120 degree (EPDM)
|
|
Working Pressure:
|
0.2-10 Bar (DN-25/100), 0.2-8 Bar (DN-125/150)
|
|
Certificate
|
ISO9001:2008,CE
|
|
Application Scope
|
Dairy, Food, Beverage, Pharmacy, Cosmetic, Liquid Sampling, Biological
|
