Name:
|
2pc flanged stainless steel ball valves
|
|
Structure:
|
Ball
|
|
Pressure:
|
High Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel
|
|
Temperature of Media:
|
Medium Temperature
|
|
Media:
|
gas water oil
|
|
Port Size:
|
1/4"-4
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
PRODUCT DESCRIPTION

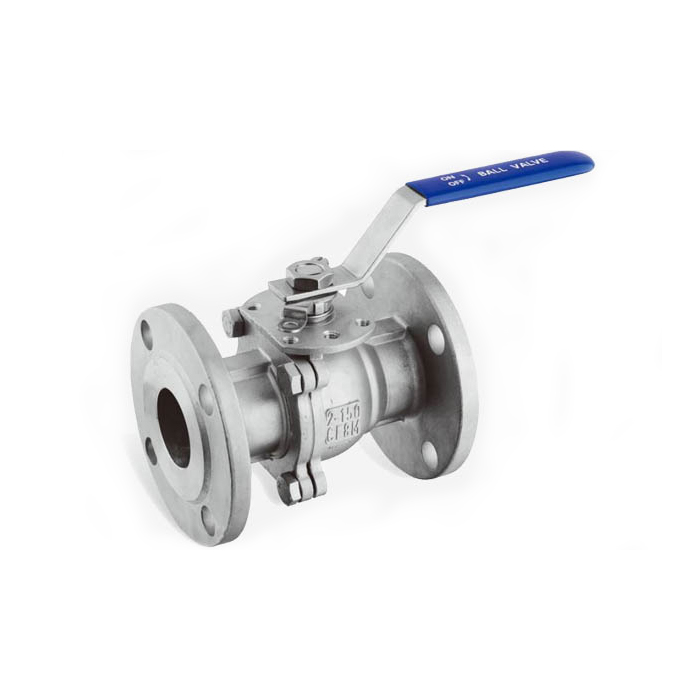

2pc flanged stainless steel ball valves
1.316/304/WCB
2.investment casting
3.ANSI B16.5 150LB
4.ISO9001 CE KC
Specifications
2pc flange valves/ Full Port/Flange Ends/150LB
Features and Benefits:
-
Full Port Design
Full port construction improves flow characteristics for greater process efficiencies
-
Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service
-
Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated
-
Live-Loaded Stem Packing
Provides constant load on the stem seal and extends service life
-
Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for greater chemical resistance and longer service life
-
ISO 5211 Direct Mounting Pad
-
Anti-Static Device for Ball-Stem-Body
-
Pressure Blance Hole in Ball Slot
-
2 Belleville Washer to Self-adjust Packing
-
Fire safety Design
|
Operating / Test Conditions:
-
Temperature Range: -20°C to 190°C
-
Maximum Working Pressure:
ANSI 150/ANSI 300
-
Working Medium: Water, Oil, Gas, Acid, etc
-
Design: ANSI/ASME B16.34,EN 12516-1
-
Inspection&Testing:API 598,EN 12266
-
Length to ANSI B16.10
Flange connection to ANSI B16.5
Options
-

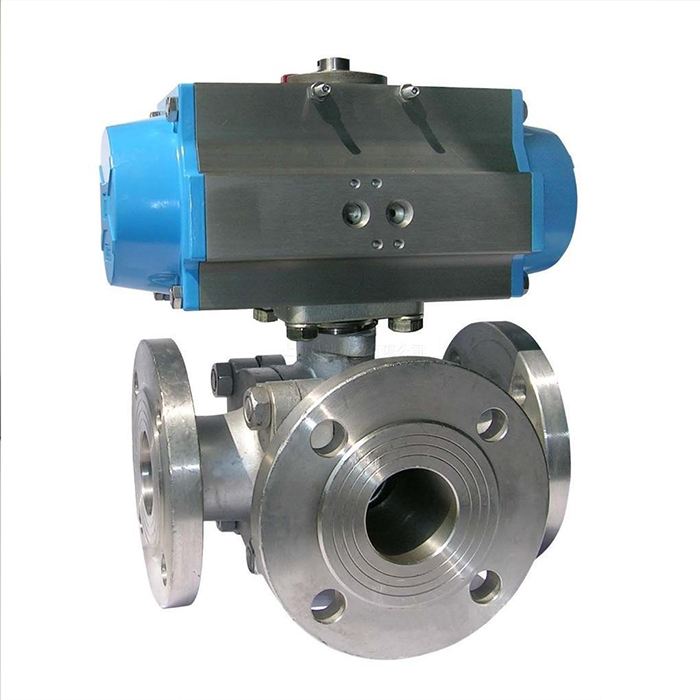

Pneumatic Actuator
-
Body Material:ASTM A351-CF8M,CF8,
-
CF8M,CF8
-
ASTM A216-WCB
|
•Packing:Paper box ,Plywood cases
•Payment term: T/T,L/C at sight,
•Brand: WONSTON or OEM
•Delivery time: 45 days
|
Main export markets:
•Europre markets
•Central/South America
•Middle East/Africa
•Asia
|
