Name:
|
Hygienic welding three-piece ball-type check valve
|
|
Standard or Nonstandard:
|
Standard
|
|
Structure:
|
Check
|
|
Pressure:
|
Medium Pressure
|
|
Power:
|
Manual
|
|
Temperature of Media:
|
Normal Temperature
|
|
Media:
|
Water, oil, etc.
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
|
Hygienic valve:
|
Hygienic check valve
|
|
Application:
|
General
|

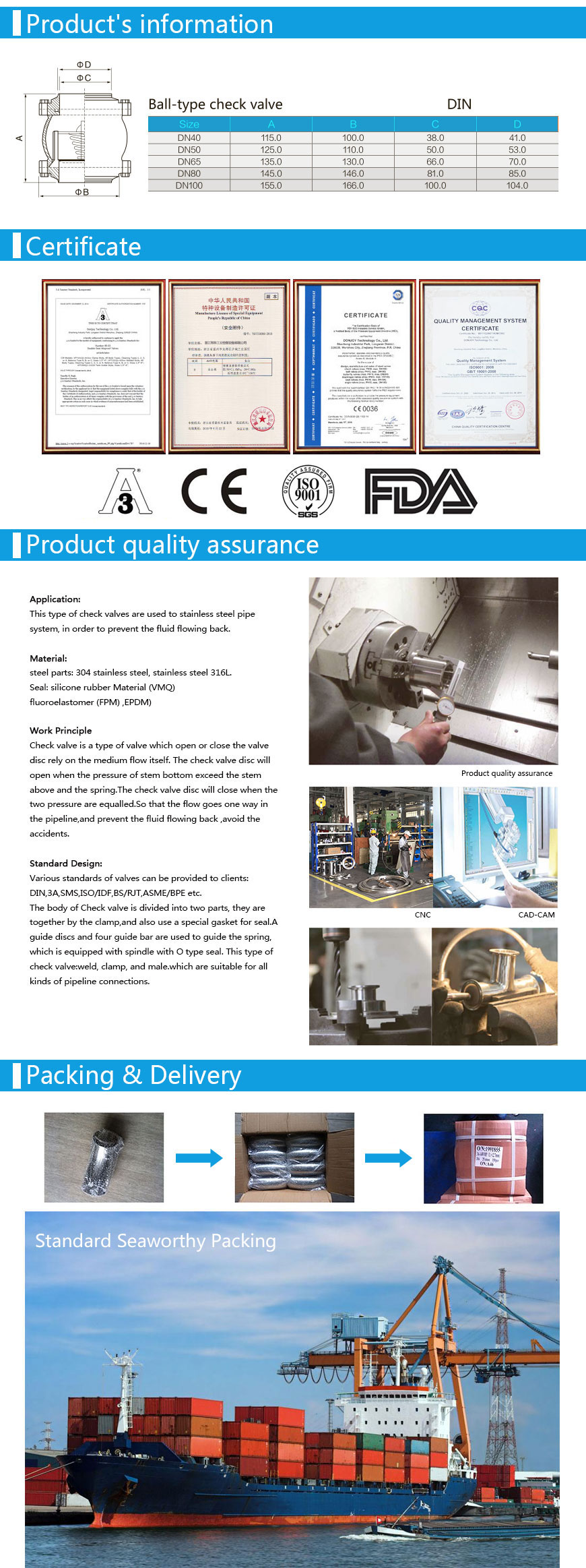

PRODUCT DESCRIPTION
|
Product Name:
|
Hygienic SS304/316 welding three-piece ball-type check valve
|
|
Valve Body Material:
|
1.4404/1.4301, SS304/SS316L
|
|
Seal Material:
|
EPDM (standard) FPM/ SILICON/ NBR, FDA177.2600
|
|
Mex working Pressure:
|
10Bar
|
|
Max. Working Temperature:
|
120 degree C
|
|
Availably Size:
|
DN25-150,1''-6''
|
|
Availably Connection:
|
Clamp/ weld/ thread/ weld thread/ flange
|
|
Availably Standard:
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated:
|
Manual, Pneumatic, Electric
|
|
Control:
|
Sensor, C-TOP, C-top controller(AS-I)
|
|
Handle Option:
|
Pull handle, plastic/ SS multi-positon handle
|
|
Handle Application:
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
|
|
Application Scope:
|
Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc.
|
|
Packaging Details:
|
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
|
