Product Name:
|

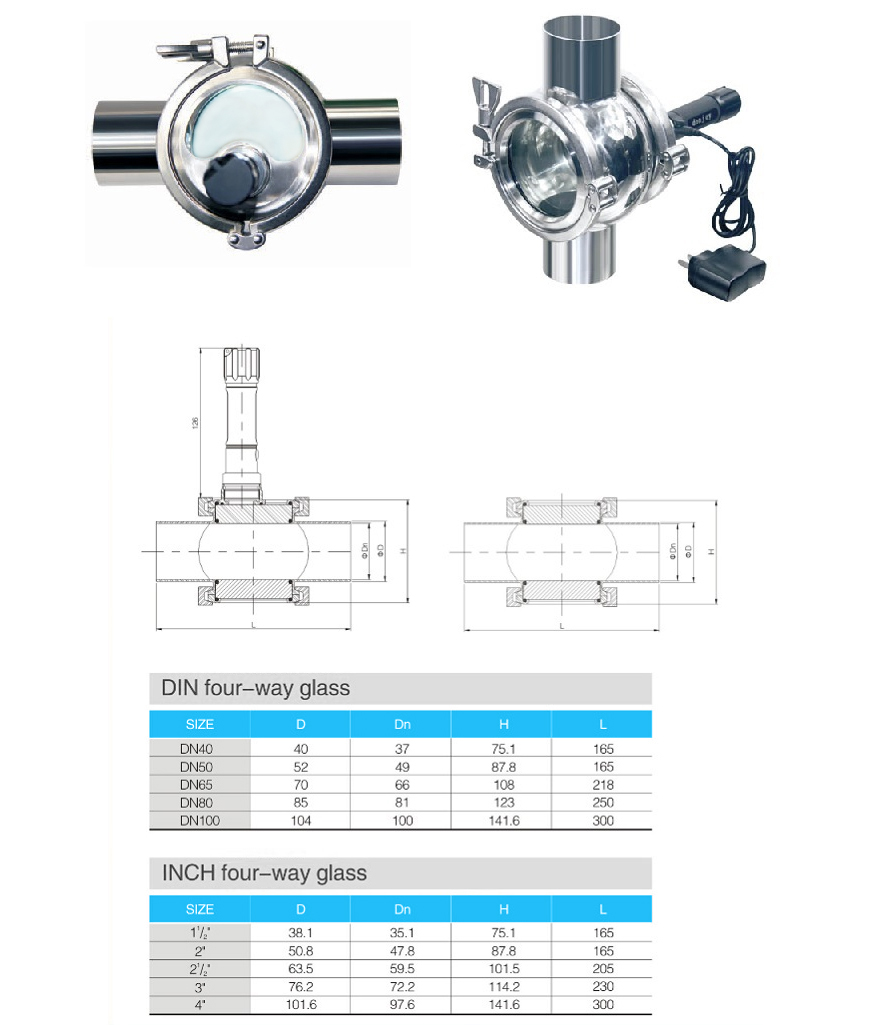

Four-way/Cross Sight Glass-butt welded
|
|
Protective sleeve Material:
|
AISI 304(1.4301) AISI316L
|
|
Gasket Material:
|
EPDM,NBR,FDA177.2600
|
|
working pressure:
|
5 bar to 10 bar according to sight glass size
|
|
Working Temperature:
|
-10°—150 °C (Basic type);Basic type with lamp:- 10°—80 °C (depending on light heat resistance)
|
|
Availably size:
|
DN25-DN100 1"-4"
|
|
Availably connection:
|
Clamp / weld / thread
|
|
Availably standard:
|
DIN/ SMS/ IDF
|
|
Assemble way:
|
the glass can be installed on the equipment through clamps.
|
|
Advantages:
|
No retention,zero dead angle,high light,white cold light source,waterproof,explosion-proof
|
|
Power option:
|
Cable power supply AC110V/220V,DC24V.OR Wireless power supply,one charging can be used 2-3 months(depending on the frenquency.)
|
|
Function:
|
Through it,operator can observe the flowing of the luquid substance clearly and precisely.
|
|
Application scope:
|
food, pharmacy, cosmetic, Chemical, etc
|
|
Packaging Details:
|
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
|
|
Delivery details:
|
Usually within 20 days after receiving T/T down payment.
|
