Name:
|
Two-piece Internal Thread Ball Valve
|
|
Pressure:
|
Medium Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel
|
|
Media:
|
Water
|
|
Place of Origin:
|
Zhejiang,China (Mainland)
|
|
Port Size:
|
DN15-DN250
|
PRODUCT DESCRIPTION
Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Srrength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicable media:Q11F-(16-64)C Water,Oil,Gas
Applicable temperature:-29~180℃
Applicable media:Q11F-(16-64)P Nitric acid,Q11F-(16-64)R Acetic acid
|
Parts name
|
Q11F-(16-64)C
|
Q11F-(16-64)P
|
Q11F-(16-64)R
|
|
Body
|
WCB
|
ZG1Cr18Ni9Ti
CF8
|
ZG1Cr18Ni12Mo2Ti
CF8
|
|
Bonnet
|
WCB
|
ZG1Cr18Ni9Ti
CF8
|
ZG1Cr18Ni12Mo2Ti
CF8
|
|
Ball
|
1Cr18Ni9Ti
304
|
1Cr18Ni9Ti
304
|
1Cr18Ni12Mo2Ti
316
|
|
Stem
|
1Cr18Ni9Ti
304
|
1Cr18Ni9Ti
304
|
1Cr18Ni12Mo2Ti
316
|
|
Sealring
|
Poltetrafluorethylene(PTFE)
|
|
Packing
|
Poltetrafluorethylene(PTFE)
|
|

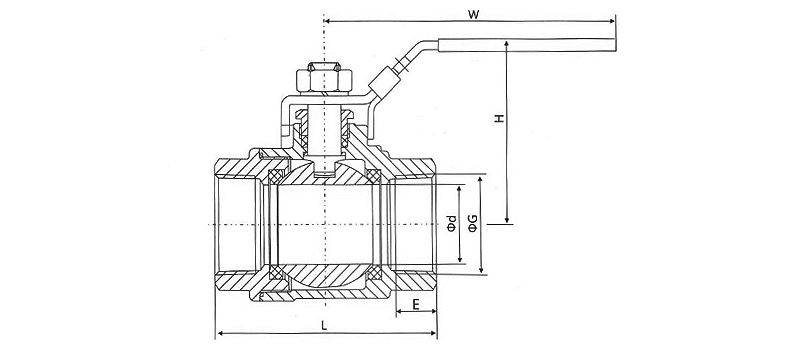

DN
|
G
|
d
|
L
|
E
|
H
|
W
|
|
8
|
1/4”
|
10
|
57
|
14
|
58
|
80
|
|
10
|
3/8”
|
12
|
57
|
14
|
58
|
80
|
|
15
|
1/2”
|
15
|
57
|
14
|
58
|
95
|
|
20
|
3/4”
|
20
|
65
|
15
|
62
|
105
|
|
25
|
1”
|
25
|
79
|
15
|
72
|
120
|
|
32
|
11/4”
|
32
|
90
|
18
|
80
|
140
|
|
40
|
11/2”
|
38
|
98
|
19
|
90
|
155
|
|
50
|
2”
|
50
|
115
|
19
|
98
|
170
|
