Name:
|
Mini Ball Valve Female/male Thread
|
|
Pressure:
|
Medium Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel
|
|
Media:
|
Water
|
|
Port Size:
|
1/4
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
PRODUCT DESCRIPTION
TECHNIAL SPECIFICATION
Design Standard:ASME B16.34
Connection Standard:ASME B1.20.1(NPT),DIN2999&BS21,ISO228/1&ISO7/1
Test and Inspection:API 598
|
Material name
|
Stainless steel
|
Forged steel
|
|
Body
|
A351 CF8 A351 CF8M
|
F304 F316
|
|
Ball
|
A276 304/A276 316
|
|
Stem
|
2Cr13/A276 304/A276 316
|
|
Seat
|
PTFE、RPTFE
|
|

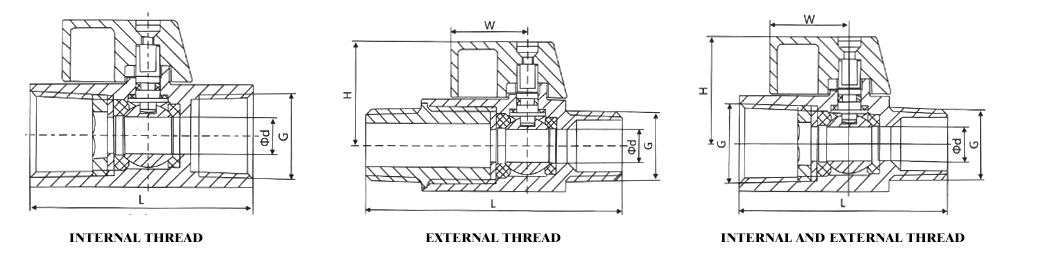

Internal thread
DN（mm）
|
G
|
d
|
L
|
H
|
W
|
|
8
|
1/4”
|
5
|
42
|
25
|
21
|
|
10
|
3/8”
|
7
|
45
|
27
|
21
|
|
15
|
1/2”
|
9
|
55
|
28.5
|
21
|
|
20
|
3/4”
|
12
|
56
|
33
|
22
|
|
25
|
1”
|
15
|
66
|
35.5
|
22
|
|
External thread
DN（mm）
|
G
|
d
|
L
|
H
|
W
|
|
8
|
1/4”
|
5
|
57
|
25
|
21
|
|
10
|
3/8”
|
7
|
60
|
27
|
21
|
|
15
|
1/2”
|
9
|
71
|
28.5
|
21
|
|
20
|
3/4”
|
12
|
72
|
33
|
22
|
|
25
|
1”
|
15
|
83
|
35.5
|
22
|
|
Internal andExternalthread
DN（mm）
|
G
|
d
|
L
|
H
|
W
|
|
8
|
1/4”
|
5
|
46
|
25
|
21
|
|
10
|
3/8”
|
7
|
48
|
27
|
21
|
|
15
|
1/2”
|
9
|
56
|
28.5
|
21
|
|
20
|
3/4”
|
12
|
56
|
33
|
22
|
|
25
|
1”
|
15
|
66
|
35.5
|
22
|
