Name:
|
Sanitary Clamp Tank Bottom Ball Valve with handle/Pneumatic/Electric
|
|
Standard or Nonstandard:
|
3A, SMS, DIN, RJT, IDF,ISO
|
|
Structure:
|
Ball
|
|
Pressure:
|
Medium Pressure
|
|
Temperature of Media:
|
Normal Temperature
|
|
Port Size:
|
DN25-DN100 or 1
|
|
Material:
|
Stainless Steel 304/316L
|
|
Seal Material:
|
Silicon, EPDM, PTFE,Viton, NBR
|
|
Max.Temperature:
|
120℃
|
|
Media:
|
water, oil, dairy, beer,liquid
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
PRODUCT DESCRIPTION
|
Product Name:
|

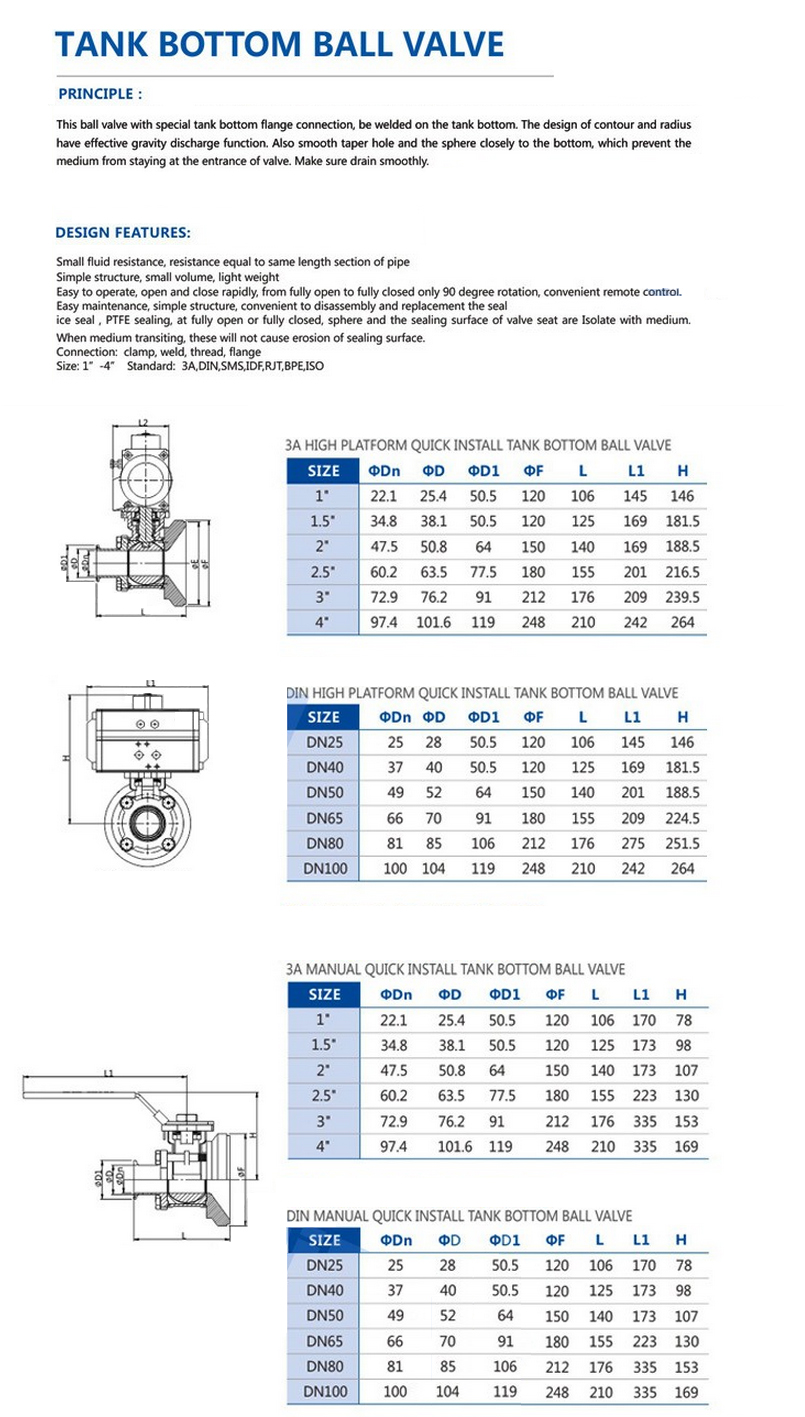

Sanitary Clamp Tank Bottom Ball Valve with handle/Pneumatic/Electric
|
|
Valve Body Material:
|
SS304 or SS316L
|
|
Seal Material:
|
Silicon, EPDM, PTFE,Viton, NBR
|
|
Max. Working Pressure:
|
10Bar
|
|
Max.Working Temperature:
|
-20 degree to +135 degree (EPDM)
|
|
Availably size:
|
DN15-DN100 or 1/2" - 4"
|
|
Availably connection:
|
Weld, Clamp, Male, Female, Flange, or Combinations
|
|
Inside SurfaceTreatment:
|
Ra≥0.4-0.8 um
|
|
SurfaceTreatment:
|
Ra≥0.8-1.6 um
|
|
Availably standard:
|
DIN,SMS,3A,RJT,IDF,ect.
|
|
Operated type:
|
Manual,Pneumatic,Electric
|
|
Certification:
|
ISO9001:2008, CE, 3A
|
