Name:
|
Threaded directional butterfly valve with plastic handle
|
|
Pressure:
|
Medium Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel, Inox
|
|
Temperature of Media:
|
Normal Temperature
|
|
Media:
|
Water
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
|
Connection way:
|
Weld/clamp/thread/flange
|

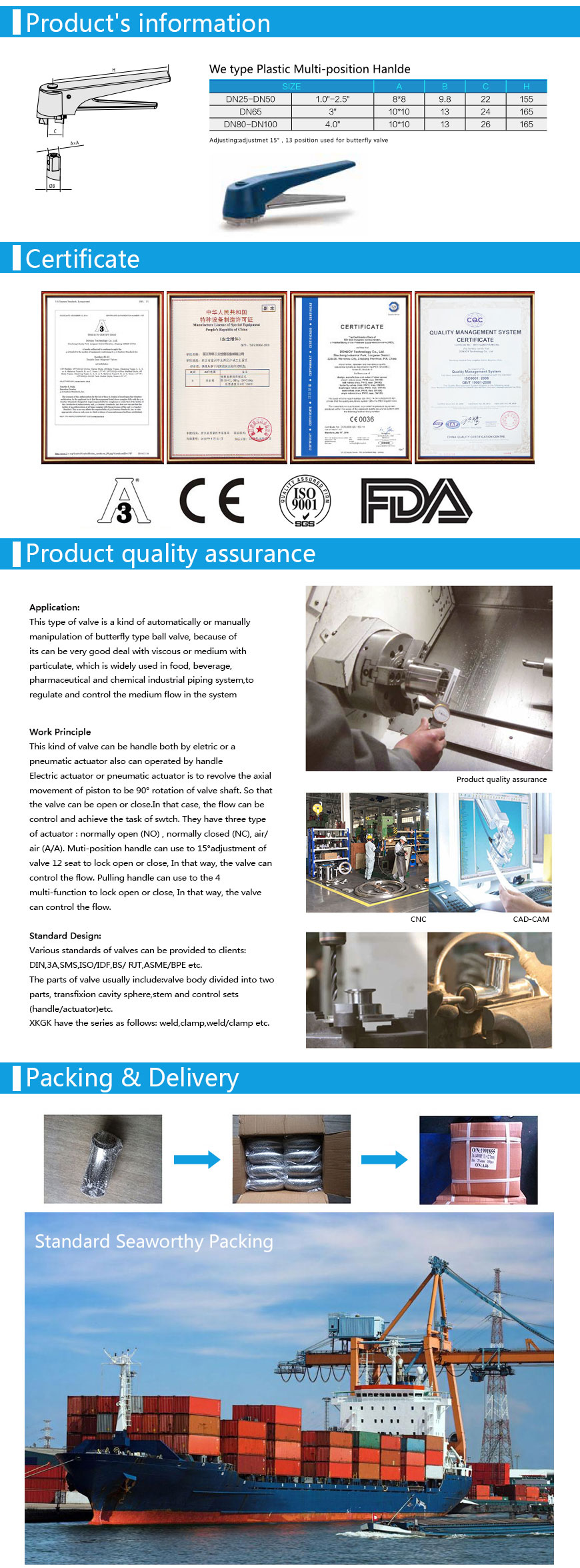

PRODUCT DESCRIPTION
|
Product Name:
|
Stainless steel threaded directional butterfly valve with plastic handle
|
|
Valve Body Material:
|
1.4404/1.4301, SS304/SS316L
|
|
Seal Material:
|
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
|
|
Mex working pressure:
|
10Bar
|
|
Max. Working Temperature:
|
120 degree C
|
|
Availably size:
|
DN10-DN300, 1/2"-12"
|
|
Availably connection:
|
Clamp / weld / thread/ weld thread/ flange
|
|
Availably standard:
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated:
|
Manual,Pneumatic, Electric
|
|
Control:
|
Sensor, C-TOP, C-top controller(AS-I)
|
|
Certificate:
|
ISO, PED/97/23/EC, FDA.177.2600
|
|
Handle application:
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
|
|
Packaging Details:
|
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
|
|
Delivery details:
|
Usually within 20 days after receiving T/T down payment.
|
