Model
|
360 spray 3D rotary tank washing nozzle
|
|
Material
|
316L ss
|
|
Max. tank diameter
|
20m
|
|
Operating pressure
|
5-20Bar
|
|
Tempreture range
|
95°
|
|
Installation
|
Vertically facing downward
|
|
Application
|
Cleaning and rinsing of large tanks
i.e. chemical industry,drink and food industry.
|
Rotary tank washing nozzle for the largest tanks and most difficult applications, this gear driven cleaning nozzle is our most powerful.
-
Very high cleaning performance already at low pressure
-
Driven and lubricated by the cleaning fluid
-
Systematically cleans the entire tank interior(360°)
-
Robust, low-maintenance stainless steel construction
Programmed rotation machines:
The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.
The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.
Rotary tank washing nozzle are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, Fuel ethanol, industrial fermentation industries and many others.

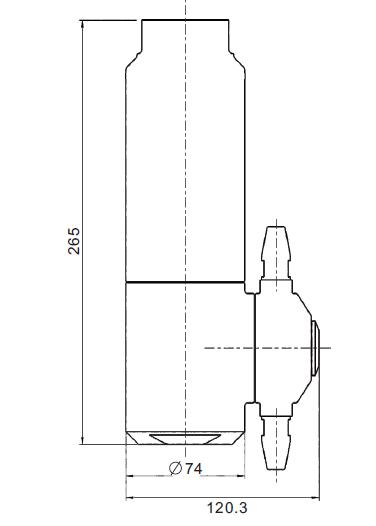

Dimensions of tank cleaning machines:

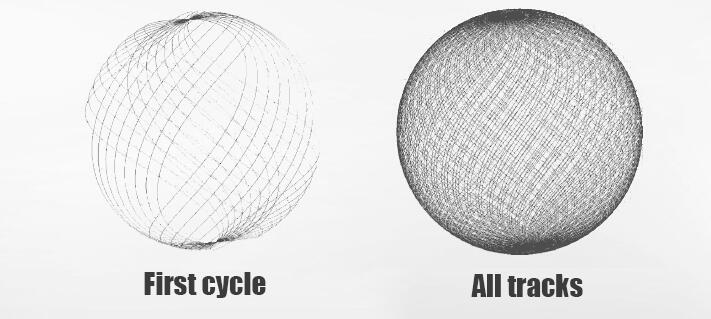

Cleaning process:
