Name:
|
High impact rotating nozzle
|
|
Material:
|
316L ss
|
|
Spray angle:
|
270°, 360°
|
|
Max. cleaning diameter:
|

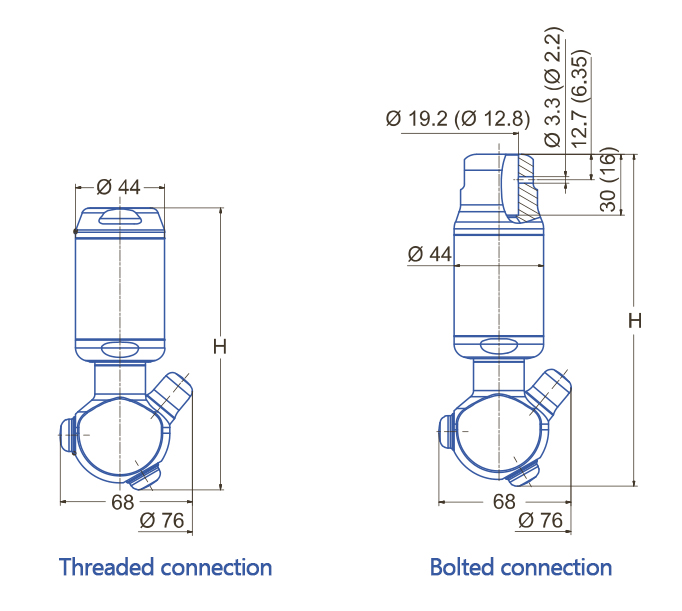

see table
|
|
Max. operating temperature:
|
80°
|
|
Operating pressure:
|
3-7 bar
|
|
Installation:
|
operation in any direction is possible
|
|
Application:
|
for the rinsing and cleaning of vessels, tanks and machines e.g. in food industry, beverage industry, pharmaceutical industry or chemical industry
|
|
Filtration:
|
line strainer with a mesh size 80/100 mesh
|
|
Place of Origin:
|
Zh
|
Design feature:
1. Controlled rotation
2. Pressure range up to 20 bar
3. Driven and lubricated by the cleaning fluid
4. Reliable slide bearing
5. Low-wear design, long life bearing
The liquid flow powers the head by an internal turbine. Either a gear reduction or a hydraulic brake is used to
control the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This
keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles
develops more powerful spray.
The new rotating nozzle works very powerfully and efficiently based on the controlled rotation.Compared to
conventional rotating cleaning cycle nozzles, time can be reduced considerably,This saves cleaning fluid, energy
costs and time.
PS:For more information, please contact customer service
