Name:
|

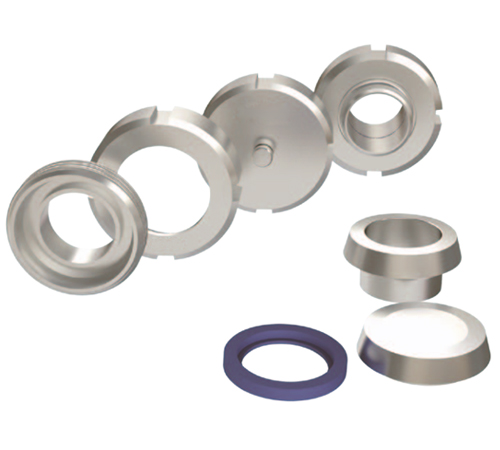

Union DIN/IDF/SMS pipe fitting
|
|
Material:
|
Stainless Steel
|
|
Technics:
|
Hydraulic pressure
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
|
Usage:
|
Pipe connection
|
|
Application:
|
Pharmacy, beer, food, dairy, beverage etc.
|
The DIN union is the German standard hygienic fitting, A complete range of DIN fittings are offered in order to meet the needs
of imported equipment from Europe.
These fittings are used for hygienic purposes and offer a leak-free joint obtained with a rubber seal.
Available in sizes
FITTINGS SPECIFICATIONS....
Size Range: DN10 ID through DN150 ID
Materials: 1.4301(304), 1.4404(316L)
Processing:Forging Machined by CNC
Internal 21Ra(0.51μm) External 32Ra(0.8μm)
Working Pressure Range,(Fully Forged Unions):
DN 10 - DN 40 Max,Working Pressure 40 Bar @20℃
DN 50 - DN 100 Max,Working pressure 25 Bar @20℃
DN 125 - DN 150 Max,Working pressure 16 Bar @20℃
