Name:
|

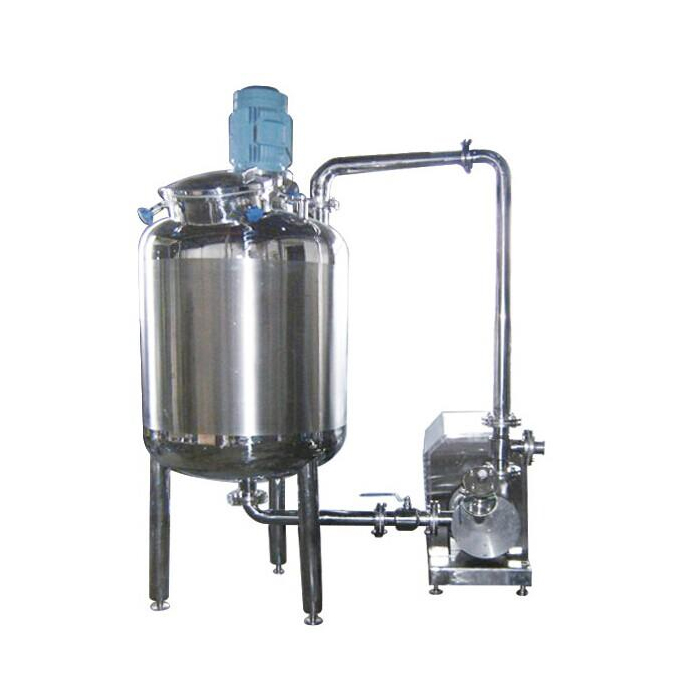

Suction-Power Mixing Dispersing Emulsifier
|
|
Theory:
|
Rotary Pump
|
|
Structure:
|
Single-stage Pump
|
|
Usage:
|
liquid with powder
|
|
Power:
|
Electric
|
|
Fuel:
|
Electric
|
|
Pressure:
|
0.15~0.4Mpa
|
|
Application:
|
Homogenize and Emulsify
|
|
Material:
|
304,316
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
Operation principle
XRL-C system is the use of special high-speed rotation of the rotor have a vacuum,the powder evently inhalation chamber work, and it evenly distributed in the rapid flow of sap flow,the flow in the blink secretary powder was completely wet, do not have a massive reunion of. Then liquid and powder through a high-shear structure for the rotor to any possible spread of the block-poly,the last fully wet and Yan evenly distributed the material
Main Parameter
|
Model
|
Power(KW)
|
Rotation Speed(r/min)
|
Capacity(m3/h)
|
Outlet pressure(Mpa)
|
|
XRL-C-120
|
7.5
|
2900
|
0-10
|
0.15
|
|
XRL-C-140
|
11/15
|
2900
|
0-20
|
0.2
|
|
XRL-C-165
|
22/30
|
2900
|
0-30
|
0.25
|
|
XRL-C-200
|
37/45
|
2900
|
0-50
|
0.3
|
|
XRL-C-260
|
55/75
|
2900
|
0-70
|
0.4
|
