Name:
|
XRH High Shear Dispersing Emulsifier(Intermittent)
|
|
Mixer Type:
|
Homogenizer
|
|
Product Type:
|
Cosmetic
|
|
Application:
|
Liquid with Suspended Solids
|
|
Additional Capabi:
|
Milling
|
|
Voltage:
|
110-600v
|
|
Power(W):
|
1.1kw-75kw
|
|
Max. Loading Capacity:
|
10000L/h
|
|
Material:
|
Stainless steel 304/316
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
Material: 304(L) or 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000
Working Method:

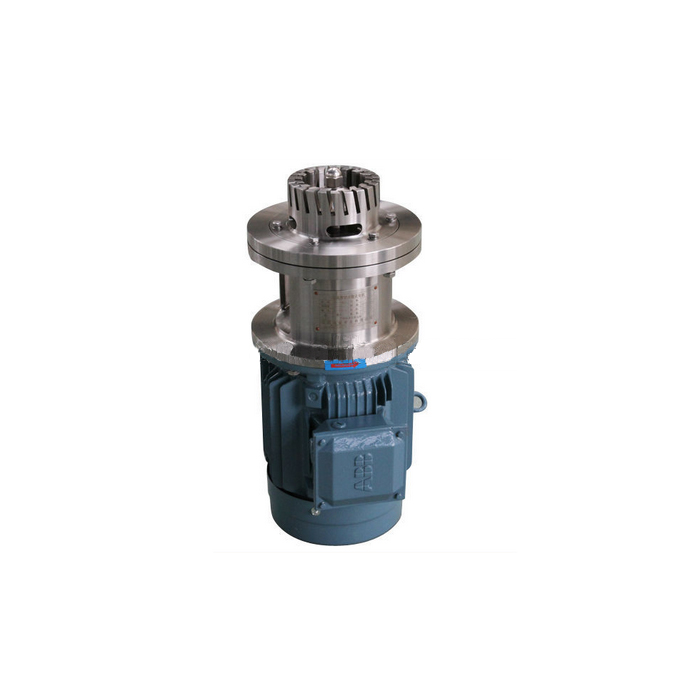

High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.
Features of Batch Mixer
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design
|
Model
|
Power(kw)
|
Speed(RPM)
|
Length(mm)
|
Capacity(L)
|
|
XRH-80
|
1.1
|
2800
|
350
|
10-40
|
|
XRH-90
|
1.5
|
2800
|
350
|
10-50
|
|
XRH-100
|
2.2
|
2800
|
650
|
50-100
|
|
XRH-120
|
3
|
2800
|
750
|
100-200
|
|
XRH-120A
|
4
|
2800
|
750
|
100-300
|
|
XRH-140
|
5.5
|
2800
|
900
|
200-600
|
|
XRH-140A
|
7.5
|
2800
|
900
|
200-800
|
|
XRH-160
|
11
|
2800
|
1050
|
500-1500
|
|
BRH-180
|
18.5
|
2800
|
1200
|
600-2000
|
|
XRH-200
|
22
|
2800
|
1200
|
800-2500
|
|
XRH-220
|
30
|
1400
|
1355
|
1000-3500
|
|
XRH-240
|
45
|
1400
|
1395
|
1500-5000
|
|
XRH-270
|
55
|
1400
|
1600
|
2000-8000
|
|
XRH-290
|
75
|
1400
|
1650
|
3000-10000
|
